Gaofu Power Maglev Air Compressor Helps Bioengineering Enterprises Save 24% Energy

The Gaofu Power Technology team has been deeply involved in the field of magnetic levitation technology for more than 20 years, transforming aerospace technology into civilian use. They have complete independent intellectual property rights and internationally leading core technologies, and have developed and produced magnetic levitation motors, blowers, air compressors, chillers, expansion generators, high-temperature heat pump units, and other products.

Gaofu Power air compressors have demonstrated significant energy-saving advantages in the field of biotechnology, especially in industries such as biological fermentation and pharmaceuticals, through advanced magnetic levitation technology and pneumatic design. Taking Shandong XX Bioengineering Company as an example, Gaofu Power magnetic levitation air compressors provide oil-free and constant pressure compressed air for biological fermentation processes. After a period of stable operation and real-time data analysis of working conditions, the energy-saving rate of Gaofu Power magnetic levitation air compressors is as high as 24%, which can save the enterprise 277800 yuan in costs throughout the year.

▲ On site pictures

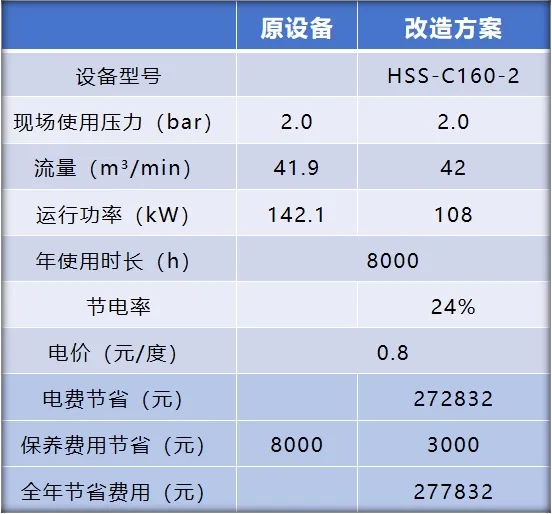

节能数据对比

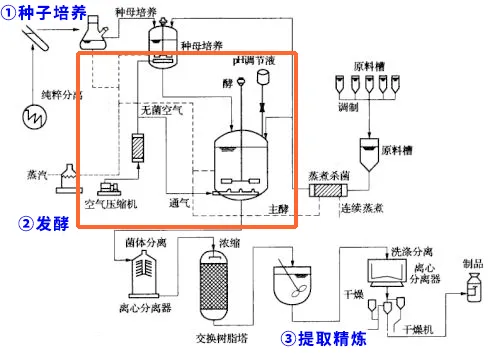

Biological fermentation requires a large amount of sterile air and comes into direct contact with the fermentation broth. Trace amounts of oil mist can cause bacterial contamination problems. Therefore, the air quality requirements are extremely high: suitable humidity and temperature, sterile dust and water removal, oil-free, stable pressure, etc. The power consumption of air compressors accounts for about 50% of the total energy consumption of the entire fermentation plant. Therefore, using advanced air compressors can not only ensure product quality, but also save energy to the greatest extent possible.

Significant energy-saving advantages

1. Efficient and energy-saving

The energy-saving efficiency of magnetic levitation air compressors can reach 20% -50% of traditional equipment. By precisely controlling the airflow and pressure, its operating energy consumption is significantly reduced, especially during low load operation.

2. 100% oil-free design

Active magnetic levitation bearings can keep the rotor of the air compressor in the optimal position, and frequency conversion technology enables low current starting and intelligent adjustment of the compressor under all operating conditions, eliminating pollution risks from the source and providing Class 0 oil-free air.

3. Low noise operation

The characteristic of frictionless operation makes its noise level much lower than traditional air compressors, with a noise level of less than 75dB, which is particularly important for enterprises that require a quiet working environment.

4. Long lifespan and strong stability

The service life of magnetic levitation bearings is over 20 years, with no performance degradation. Due to the reduction of mechanical component wear, the service life of magnetic levitation air compressors can usually reach 2-3 times that of traditional equipment.

5. Intelligent control and low maintenance costs

Equipped with IoT technology as standard, it can be conveniently connected to the user's central control system for real-time monitoring of operational status.

In the field of biological fermentation, the investment payback period for renovation projects is short, usually 1.6-2 years. In addition, the efficiency of the equipment is stable throughout its lifecycle, resulting in long-term cost savings. Gaofu Power Air Compressor, with its high efficiency, energy-saving, clean and oil-free, intelligent and stable features, has become the core equipment for biotechnology enterprises to achieve green transformation and cost reduction and efficiency improvement, helping the industry achieve sustainable development.
