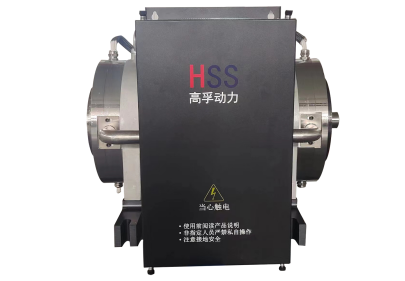

1. Product Introduction:

Gaofu Power's magnetic levitation high-speed motor originates from the transformation of aerospace technology and adopts Gaofu's fully proprietary magnetic levitation bearing technology, high-speed permanent magnet synchronous motor technology, and high-power motor intelligent control technology. Featuring high efficiency, low consumption, low noise, and long lifespan, it covers multiple power ranges and is widely suitable for scenarios such as turbine machinery and energy storage.

◆ Aerospace technology for civilian use

◆ No contact, no friction, no lubrication required

The maximum speed can reach 100000r/min or above

Save 80% -90% space

◆ Maintenance free

◆ National key recommended product technology for electronic energy conservation

2. Performance characteristics

1. Energy saving and efficient

Zero mechanical and zero friction

Transmission efficiency can reach 98%

Energy saving 30-40%

2. Reliable performance

maintenance-free

Design service life of 20 years

secure

Modular design

3. Environmentally friendly

energy saving and emission reduction

No oil pollution

Save space by 80% to 90%

Noise level as low as 80dB

4. Design Intelligence

Remote full state monitoring

Parameter self identification

fault self-diagnosis

Smart motor

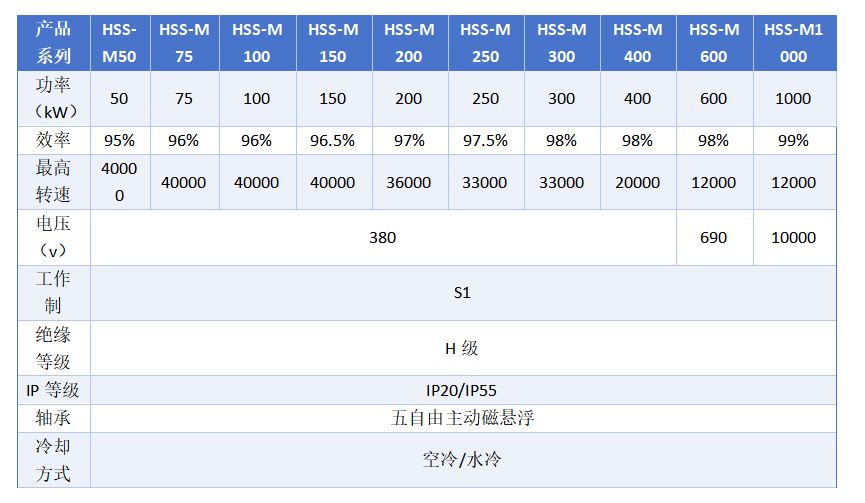

3. Model parameters

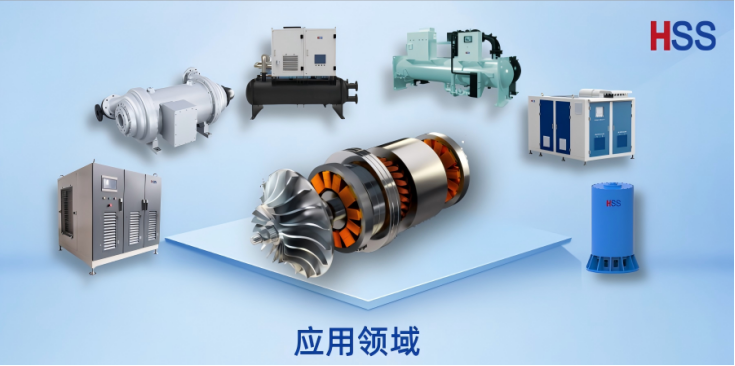

4. Application Fields

Gaofu Power's magnetic levitation motor products are widely used in complete machine products such as magnetic levitation blowers, air compressors, vacuum pumps, refrigeration compressors, energy storage flywheels, etc.

At present, there are thousands of maglev motors operating efficiently in various industries across the country, providing customers with more efficient, cost-effective, and advanced scientific application solutions.
